The ExpertCenter P500 SFF redefines the 8.6L Small Form Factor (SFF) desktop with the power of up to an Intel® Core™ 7 240H processor and delivers exceptional expandability – matching traditional desktops with up to 64GB DDR5-5200MT/s RAM via two SO-DIMM slots. It also supports dual NVMe PCIe Gen 4 SSD 2280 slots, SATA ports for an optical drive and a full-size HDD, and up to an NVIDIA® RTX™ A400 graphics card.
| Products Specification | |
| Model | P500SV |
| Operating System | Non-preinstalled OS , Windows 11 Pro – ASUS recommends Windows 11 Pro for business |
| Processor | Intel® Core™ i5-13420H Processor 2.1 GHz (12MB Cache, up to 4.6 GHz, 8 cores, 12 Threads) |
| Graphics | NVIDIA® RTX A400 4GB GDDR6:4x mini-DP |
| Memory | 2x DDR5 SO-DIMM slot, 8GB DDR5 SO-DIMM x 2, Memory max up to:64GB |
| SATA | 2 x SATA 6.0Gb/s ports |
| Storage | 512GB M.2 2280 NVMe™ PCIe® 4.0 SSD |
| Optical Drive (Optional) Optional: | Without optical drive, DVD writer 8X, DVD reader 8X |

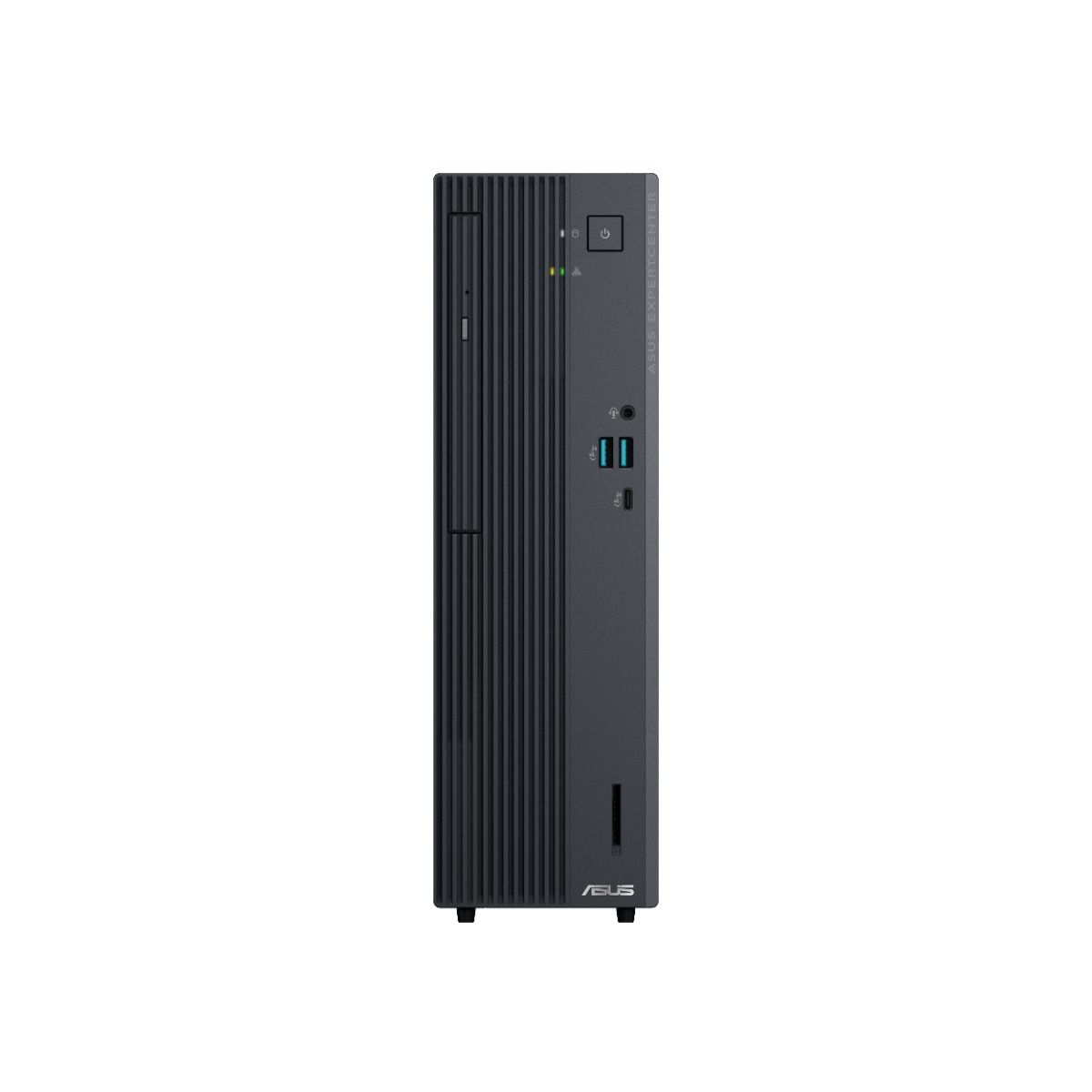

| Front I/O Ports | 1x 3.5mm combo audio jack 2x USB 3.2 Gen 1 Type-A 1x USB 3.2 Gen 1 Type-C 1x 2 in 1 card reader SD / MMC |

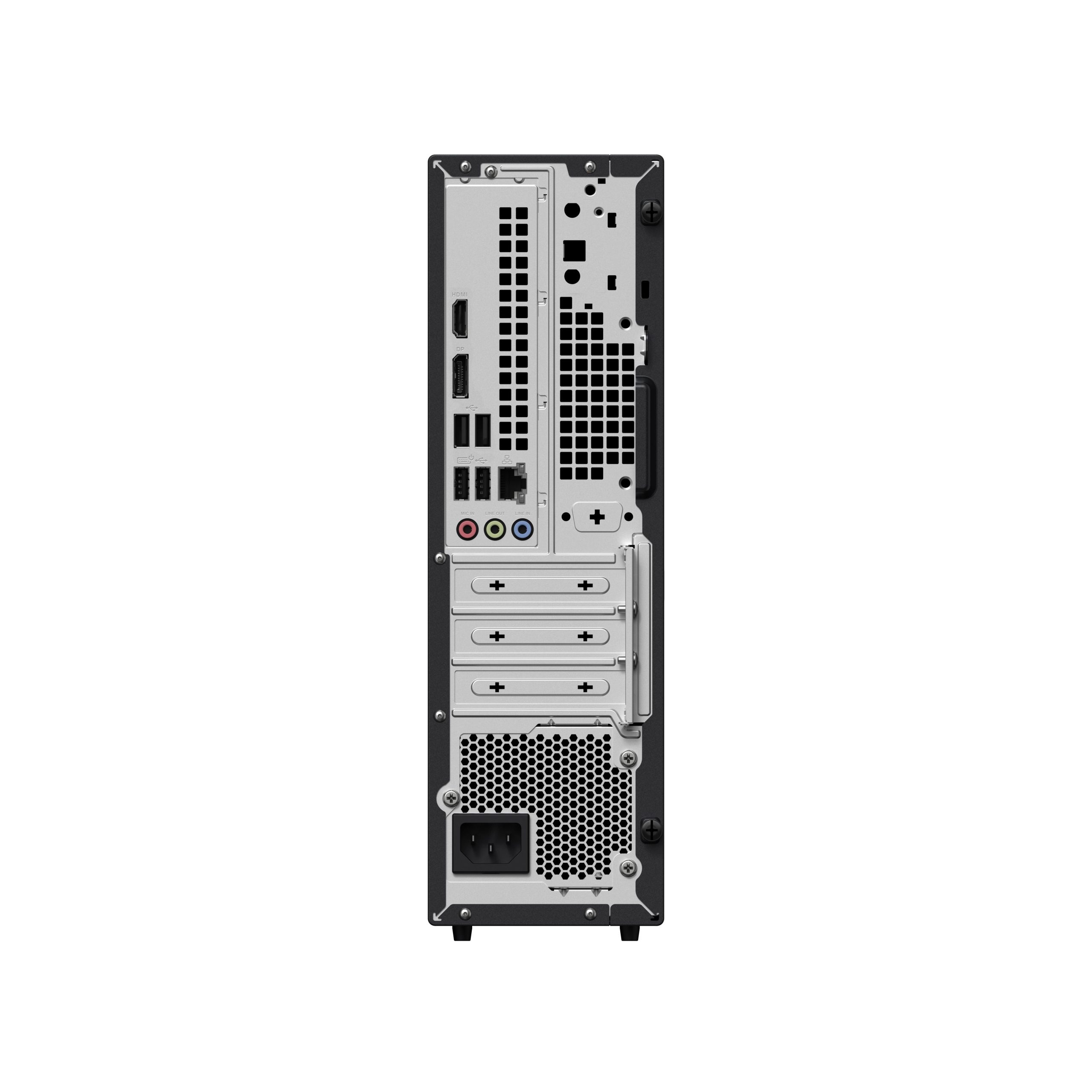

| Rear I/O Ports | 1x RJ45 Gigabit Ethernet 1x HDMI 1.4 1x Displayport 1.4 1x 7.1 channel audio (microphone, line-out, Line-in) 1x Kensington lock 4x USB 2.0 Type-A |
| Expansion Slots(includes used) | 1x PCIe® 4.0 x 16 (operating at PCIe® 4.0 x8) 2x M.2 2280 connector for storage 1x M.2 connector for WiFi 2x DDR5 SO-DIMM slot |
| Audio | High Definition 7.1 Channel Audio |
| Network and Communication | Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.4 Wireless Card |
| Power Supply | 180W power supply (80+ Bronze, peak 228W) |
| Weight | 05.06 kg (11.16 lbs) |
| Dimensions (W x D x H) | 09.30 x 29.60 x 30.90 cm (3.66″ x 11.65″ x 12.17″) |
| Built-in Apps | MyASUS |
| MyASUS Features | System diagnosis Fan profile AppDeals |
| Ecolabels & Compliances | EPEAT Silver Energy star 8.0 RoHS REACH |
| Security | Kensington Security Slot™(7x 3mm) HDD User Password Protection and Security Discrete Trusted Platform Module (TPM) 2.0 |
