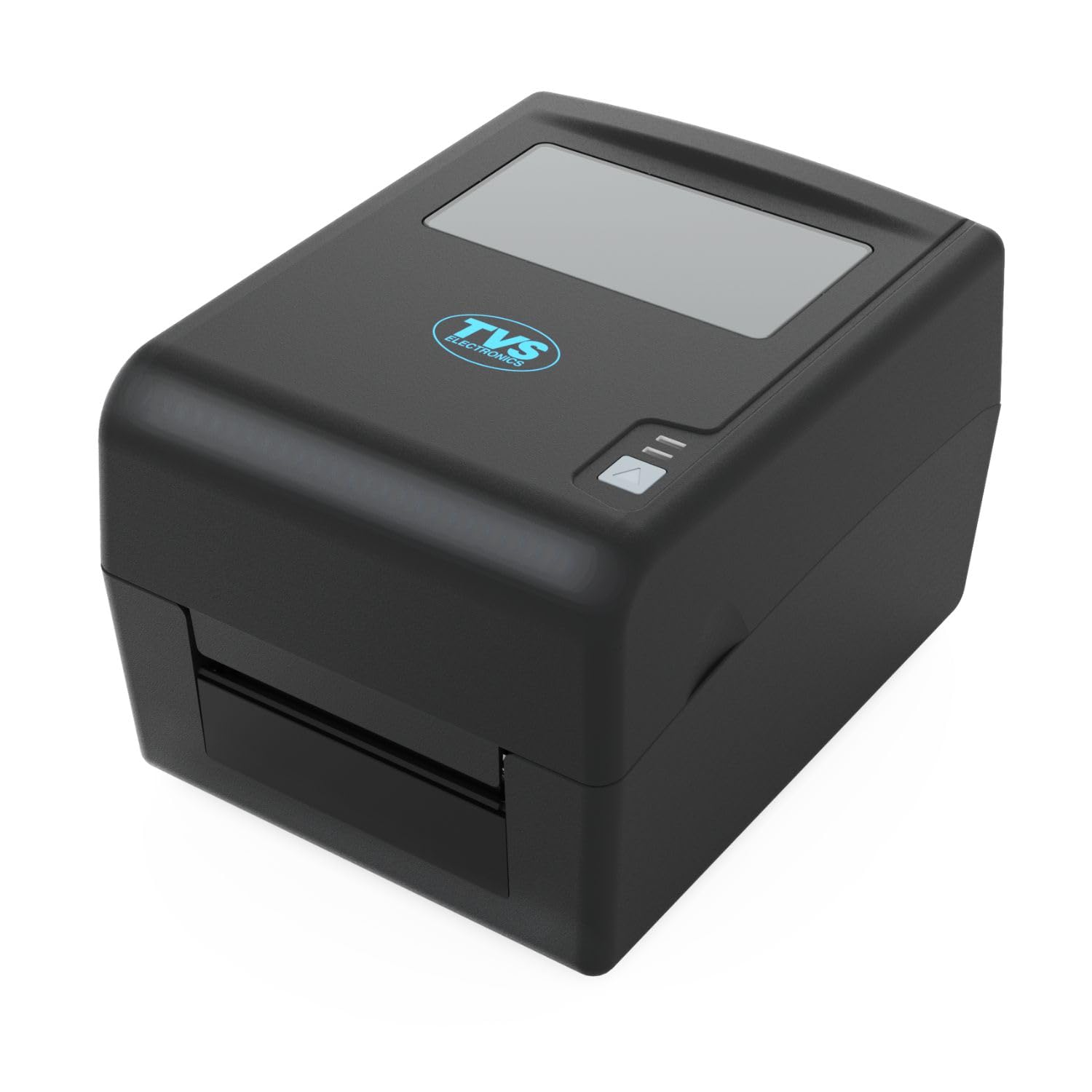

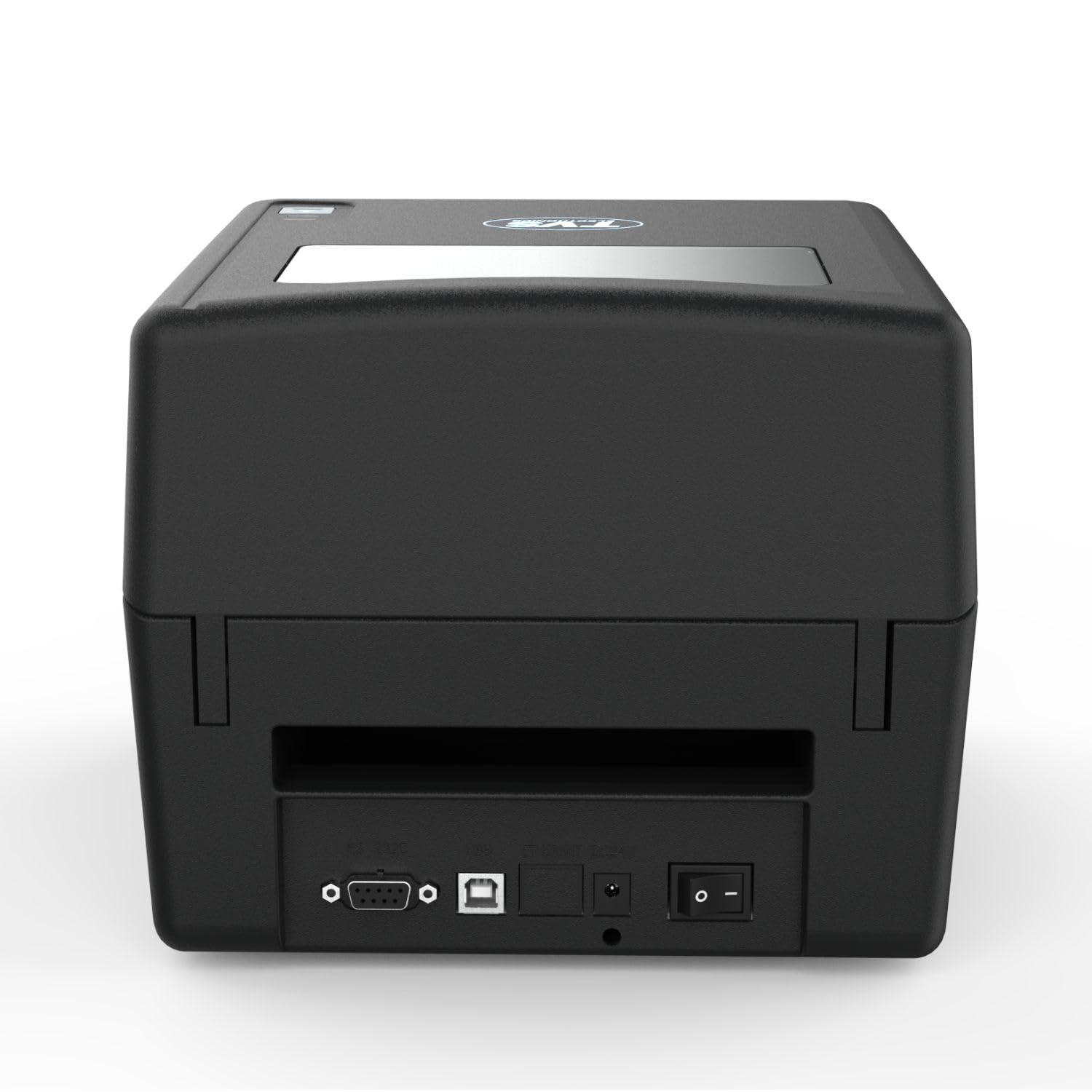

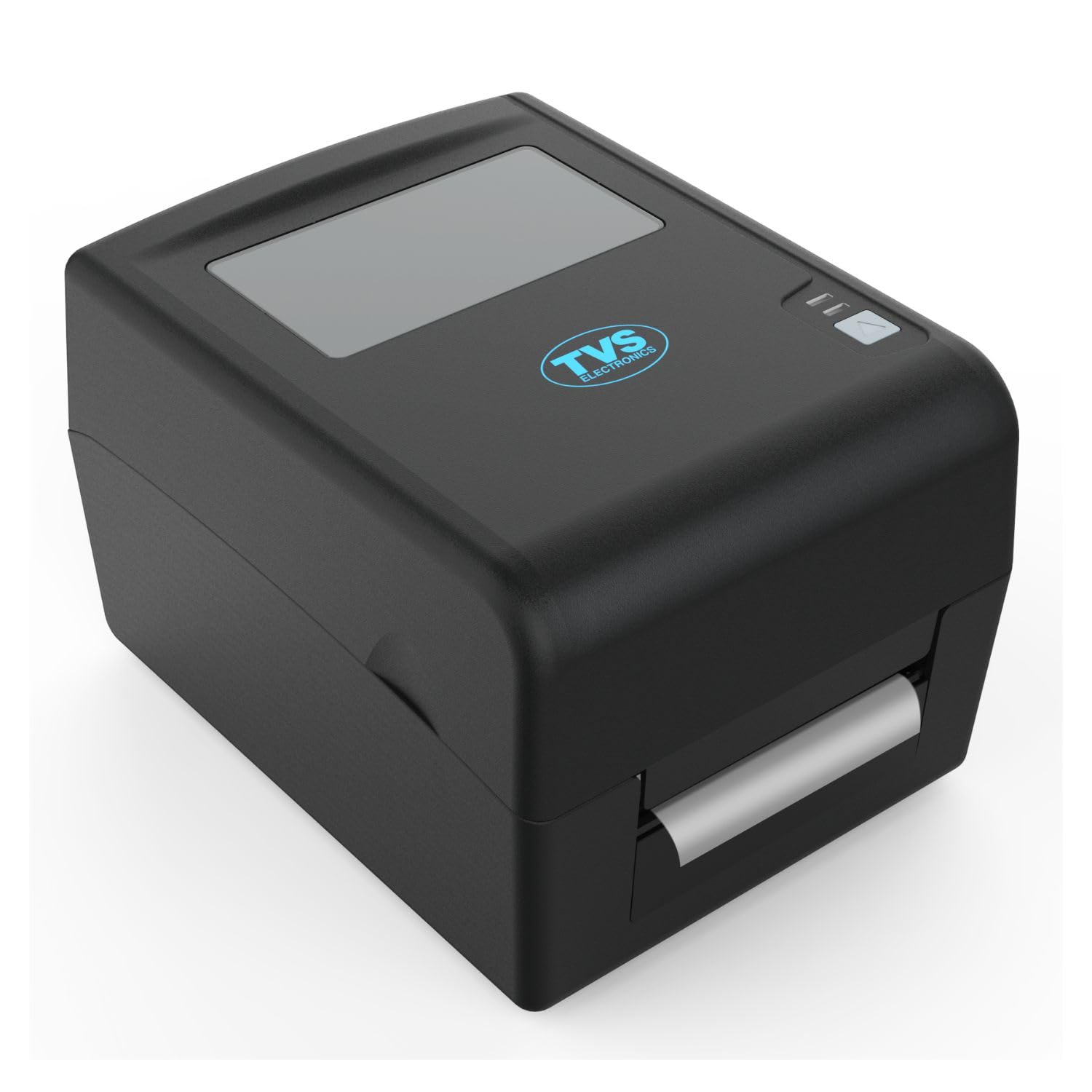

TVS ELECTRONICS LP 46 Dlite 4” Inches Thermal Label Printer
- 🏷️Brand:TVSE
- 🎟️Product Code:LP 46DLITE
- ✔️Availability:In Stock
TVS ELECTRONICS LP 46 Dlite 4” Inches Thermal Label Printer | USB Connectivity | 203 DPI Resolution | High Ribbon Capacity of 300 Meters.
The LP 46 Dlite Barcode Printer is an advanced solution offering unmatched reliability for high-resolution label and barcode printing. Utilizing the latest technology to elevate label printing with the USB interface, increased storage capacity, and a high ribbon capacity, the printer is designed for convenience and efficiency. Its compact, space-saving design, combined with a quick installation process and transparent window for easy monitoring, makes it an ideal choice for businesses looking to streamline their printing operations.
Offer Price₹ 11,990.00
37% Off₹ 18,990.00
Use pincode to check delivery info
Delivery is guaranteed as long as our locations stay open according to government regulations.
| Products Specification | |
| Print Method | Thermal / Thermal Transfer |
| Resolution | 203 DPI / 300 DPI |
| Max. Print Width | 108 mm (203 DPI) / 106 mm (300 DPI) |
| Max. Print Speed | 152 mm/s (203 DPI) / 102 mm/s (300 DPI) |
| Memory | SDRAM: 32MB<br>Flash: 16MB (64MB optional) |
| Sensor | Photoelectric Sensor |
| TPH Temp Detection | Thermistor |
| TPH Position Detection | Microswitch |
| Interface | Standard USB |
| Optional Interfaces | RS232 Serial, Ethernet, Bluetooth, WiFi (either Bluetooth or WiFi) |
| CPU | 32-bit RISC MCP |
| Barcode Support – 1D | Code39, Code93, Codabar, Code128 (Subsets A/B/C), EAN-13/8, UPC-A/E, Planet Code, etc. |
| Barcode Support – 2D | PDF417, MicroPDF417, QR Code, DataMatrix, MaxiCode, GS1 Composite |
| Character Rotation | 0°, 90°, 180°, 270° |
| Character Enlargement | 1–10× |
| Font Support | 7 Built-in Dot Matrix Fonts, 1 Vector Font<br>Downloadable Dot Matrix & Vector Fonts |
| Graphics Support | Binary Bitmap, HEX, PCX, BMP, IMG (downloadable to FLASH/RAM) |
| Paper Types | Continuous, Marking, Label, Perforated Paper |
| Max. Paper Width | 118 mm |
| Max. Paper Roll OD | 127 mm (5 inch) |
| Paper Roll ID | 25.4 mm (1 inch) / 38 mm (1.5 inch) |
| Paper Output Options | Tear Off, Rewind, Optional: Peel Off / Cut |
| Supported Paper Thickness | 0.06 – 0.25 mm |
| Max. Ribbon Length | 300 m |
| Ribbon Core ID | 12.7 mm / 25.4 mm |
| Buttons & Indicators | 1 Button, 2 Indicators |
| Power Input | 100–240V AC, 50–60 Hz |
| Power Output | 24V DC, 2.5A |
| Operating Conditions | 5–45°C, 20–90% RH (at 40°C) |
| Storage Conditions | –40–60°C, 20–93% RH (at 40°C) |
| Dimensions (L×W×H) | 280 × 218 × 180 mm |
| Weight | Approx. 2.3 kg |
| Warranty | 1 Year |
| Weight | 1.5 kg |
|---|---|
| Dimensions | 28 × 21 × 18 in |
| Warranty | 1 Year |
