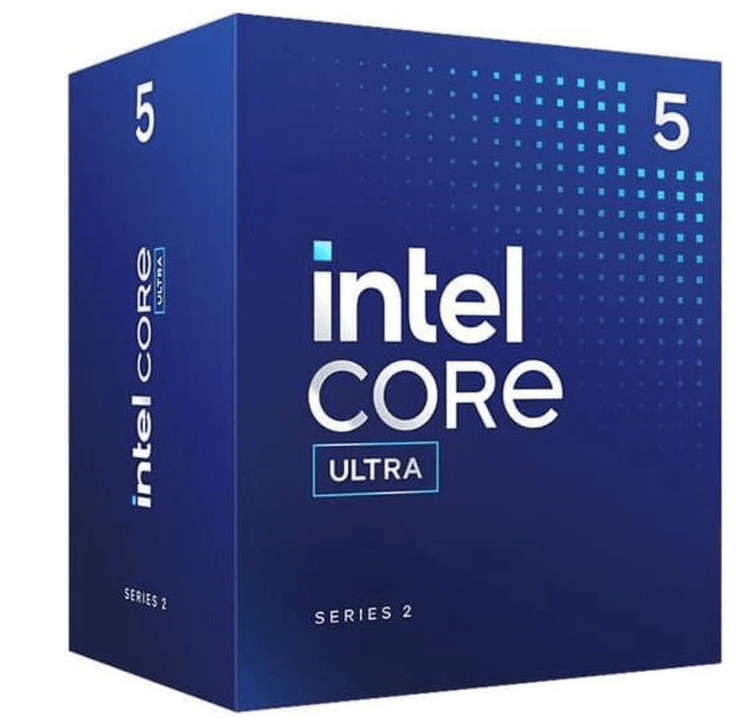

Intel Core Ultra 5 225 Desktop Processor
|
| CPU Specifications |
|
| Total Cores |
10 |
| Performance-cores |
6 |
| Efficient-cores |
4 |
| Low Power Efficient-cores |
0 |
| Total Threads |
10 |
| Max Turbo Frequency |
4.9 GHz |
| Performance-core Max Turbo Frequency |
4.9 GHz |
| Efficient-core Max Turbo Frequency |
4.4 GHz |
| Performance-core Base Frequency |
3.3 GHz |
| Efficient-core Base Frequency |
2.7 GHz |
| Cache |
20 MB Intel® Smart Cache |
| Total L2 Cache |
22 MB |
| Processor Base Power |
65 W |
| Maximum Turbo Power |
121 W |
| Intel® Deep Learning Boost (DL Boost) |
Yes |
| AI Software Frameworks Supported |
OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN |
| CPU Lithography |
TSMC N3B |
| Marketing Status |
Launched |
| Launch Date |
Q1’25 |
| Embedded Options Available |
Yes |
| Use Conditions |
PC / Client / Tablet |
| Specification |
|
| GPU Name |
Intel® Graphics |
| Graphics Base Frequency |
300 MHz |
| Graphics Max Dynamic Frequency |
1.8 GHz |
| GPU Peak TOPS (Int8) |
4 |
| Graphics Output |
eDP 1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL |
| Xe-cores |
2 |
| Max Resolution (HDMI) |
4096×2304 @ 60Hz (HDMI 2.1 TMDS) / 7680×4320 @ 60Hz (HDMI 2.1 FRL) |
| Max Resolution (DP) |
7680×4320 @ 60Hz |
| Max Resolution (eDP) |
3840×2400 @ 120Hz |
| DirectX Support |
12 |
| OpenGL Support |
4.5 |
| OpenCL Support |
3 |
| H.264 Encode/Decode |
Yes |
| H.265 (HEVC) Encode/Decode |
Yes |
| AV1 Encode/Decode |
Yes |
| VP9 Bitstream & Decode |
Yes |
| Intel® Quick Sync Video |
Yes |
| # of Displays Supported |
4 |
| Device ID |
0x7D67 |
| Intel® DL Boost on GPU |
Yes |
| AI Frameworks Supported by GPU |
OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU |
