Gigabyte Z690 Aero G Motherboard
Gigabyte Z690 Aero G Motherboard - Image 2
Gigabyte Z690 Aero G Motherboard - Image 3

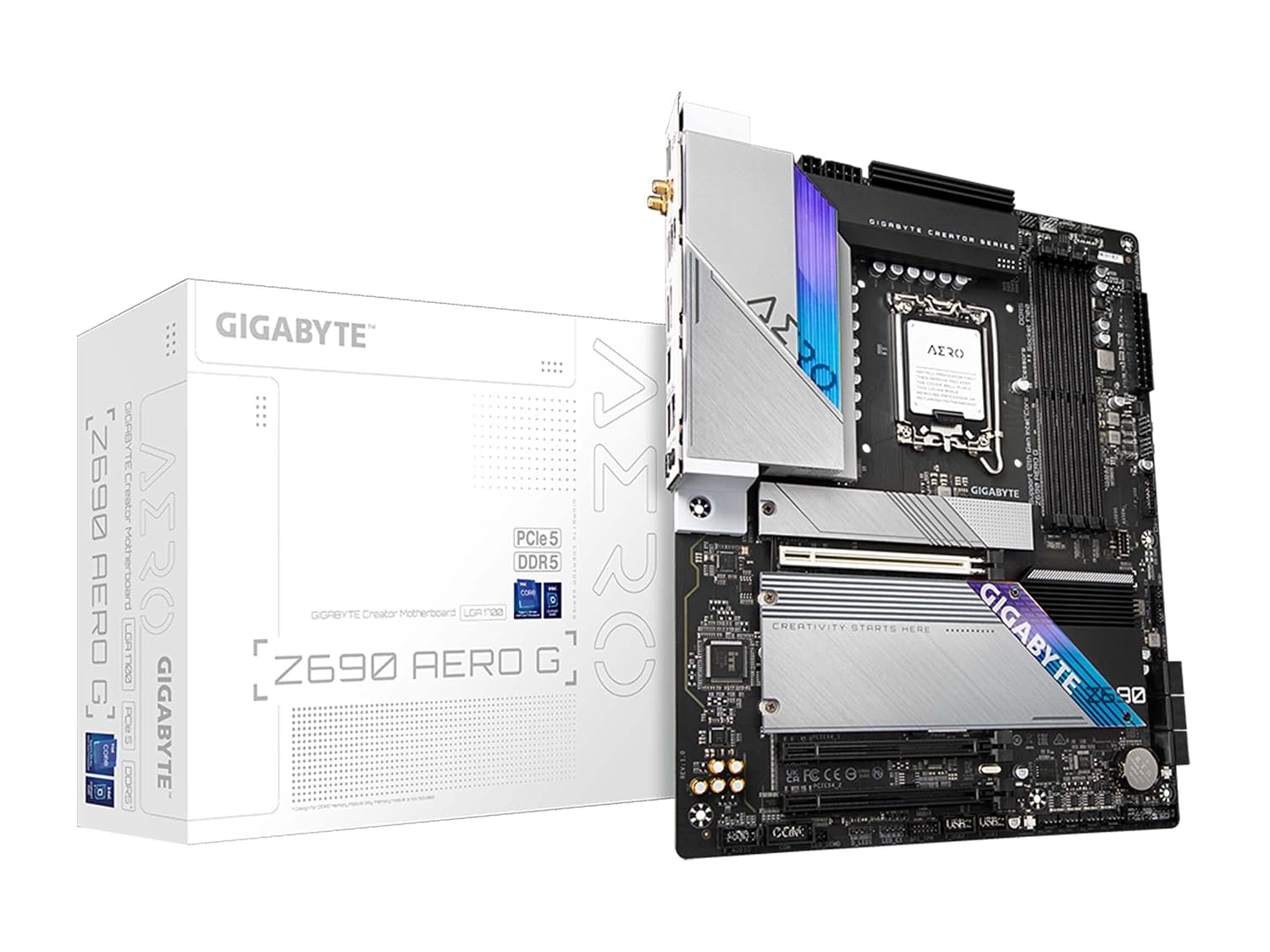

GIGABYTE Z690 AERO G Motherboard

  • 🏷️Brand:GIGABYTE
  • 🎟️Product Code:Z690 Aero G
  • ✔️Availability:In Stock

Brand: GIGABYTE

CPU Socket: LGA 1700

RAM Memory Technology: DDR5

Compatible Processors: 12th Gen Intel Core

Chipset Type: Intel Z690

Offer Price₹ 31,900.00
34% Off₹ 48,000.00
Delivery is guaranteed as long as our locations stay open according to government regulations.
Buy Now
Add To Wishlist
Remove From Wishlist
Compare

GIGABYTE Z690 AERO G Motherboard Key Features

  • Intel LGA 1700 Socket – Supports 12th Gen Intel Core Series processors.
  • DDR5 Compatible – Dual-channel Non-ECC unbuffered DDR5 memory support.
  • Advanced Thermal Design – Comprehensive thermal architecture with enlarged thermal guards.

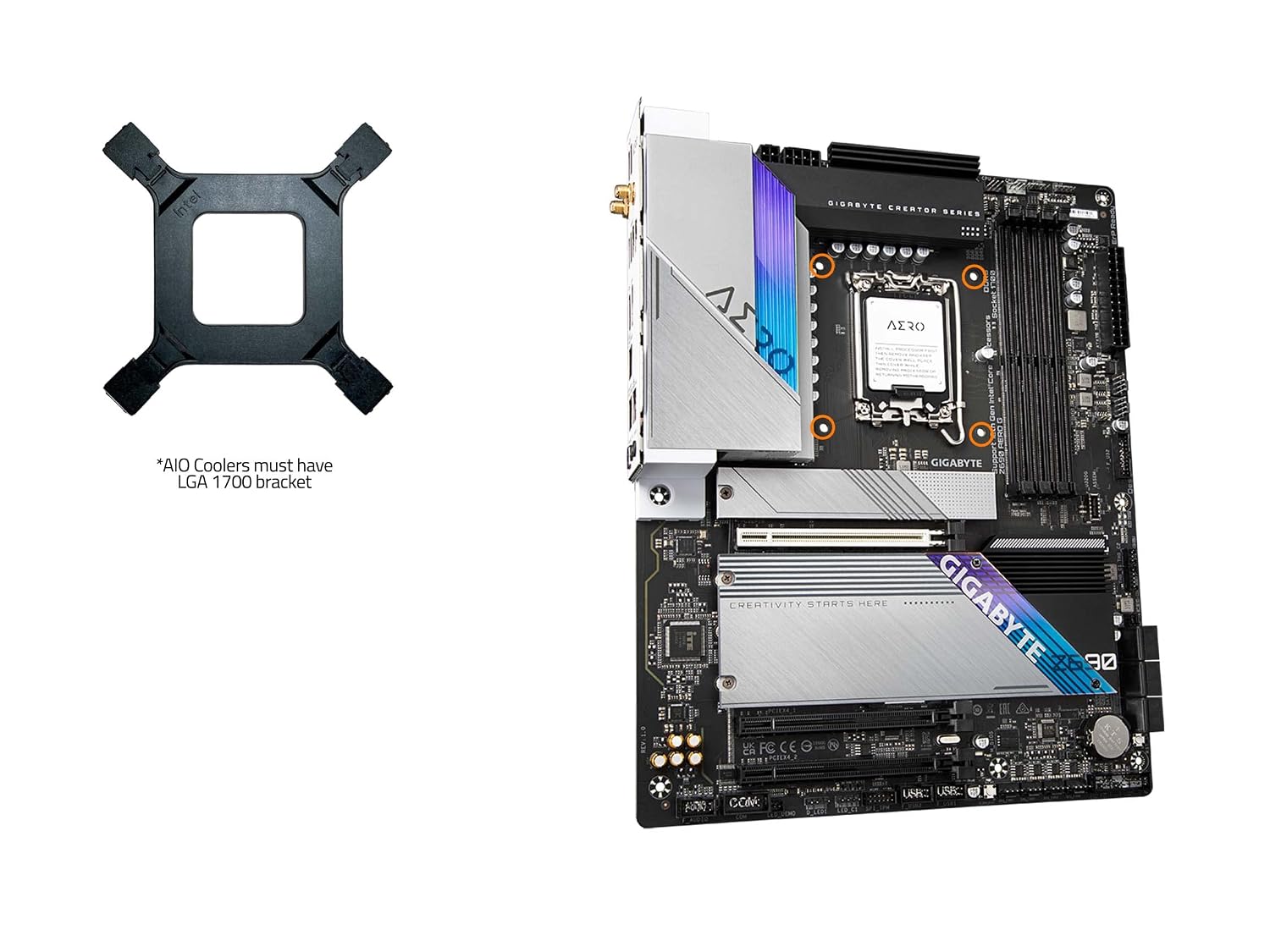

  • Cooling Bracket Compatibility – Compatible only with Intel LGA 1700 cooling brackets.
  • High-Grade Storage Support – Multiple high-speed storage options for enhanced performance.
  • Smart Fan 6 – Advanced fan controls for optimized cooling and quieter operation.
  • PCIe 5.0 Support – Next-generation PCI Express technology for high-performance components.

Product information

Processor SocketLGA 1700
RAM Memory TechnologyDDR5
Chipset TypeIntel Z690
Memory Clock Speed6000 MHz
DriveMemory Storage Capacity128 GB
Main Power Connector Type24-pin
Memory Slots Available4
Number of Ports1
Total Usb Ports10
BrandGIGABYTE
Model NameZ690 AERO G
Model NumberZ690
Item Weight3
Warranty Description3 Years

    Audio Chipset

    Realtek ALC4080

    Form Factor

    ATX

    Windows Compatibility

    Windows 11 Supported

    LED Lighting

    RGB

    Form Factor

    ATX

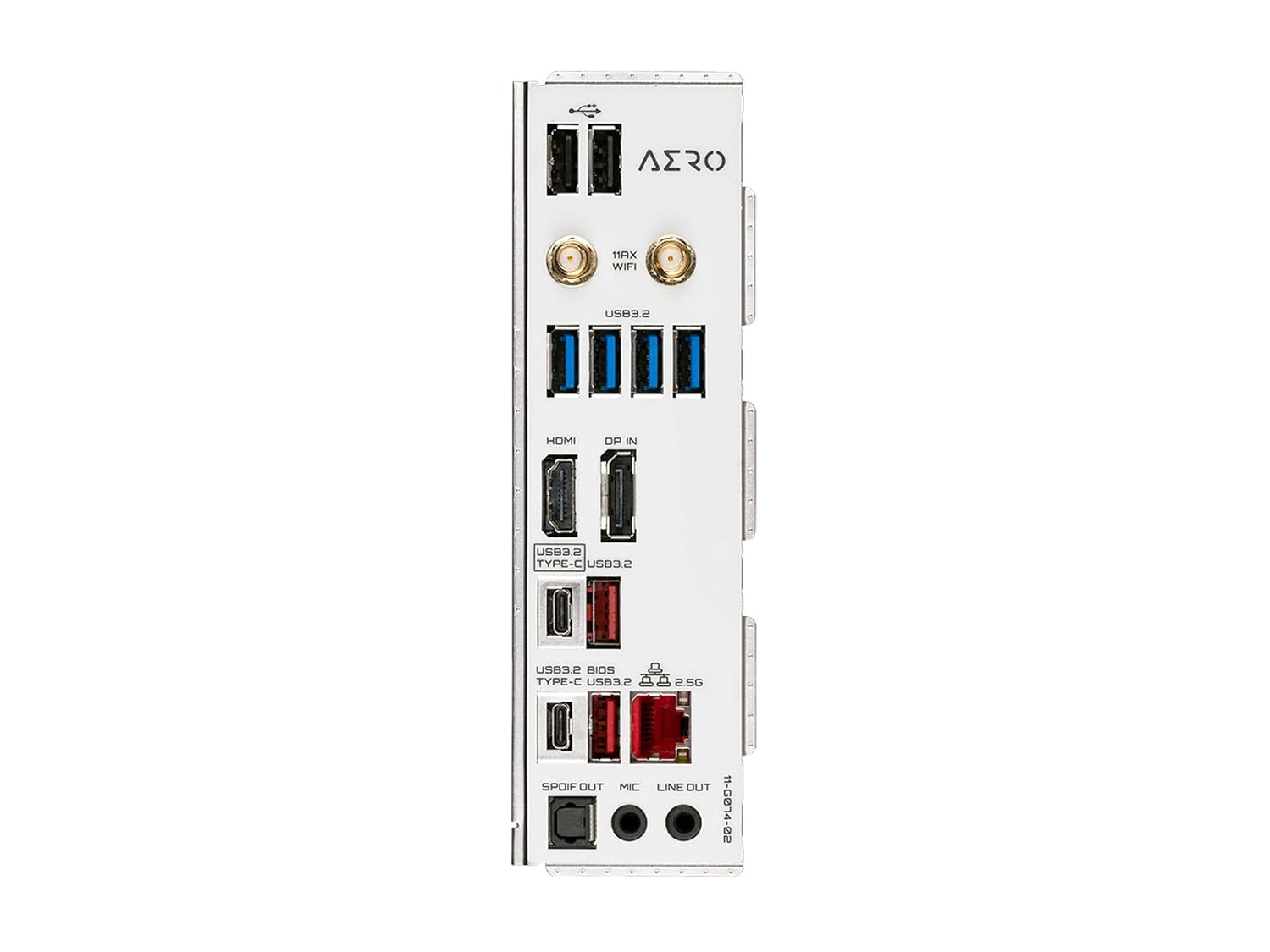

    Back I/O Ports

    2 x USB 2.0/1.1 ports
    4 x USB 3.2 Gen 1 ports
    2 x USB 3.2 Gen 2 Type-A ports (red)
    1 x USB Type-C port, with USB 3.2 Gen 2×2 support
    1 x USB Type-C port, with USB 3.2 Gen 1 support
    2 x SMA antenna connectors (2T2R)
    1 x RJ-45 port
    1 x DisplayPort In port
    1 x HDMI port
    1 x optical S/PDIF Out connector
    2 x audio jacks

    Other Connectors

    1 x CPU fan header
    1 x water cooling CPU fan header
    4 x system fan headers
    2 x system fan/water cooling pump headers
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    1 x front panel header
    1 x front panel audio header
    1 x noise detection header
    2 x Thunderbolt add-in card connectors
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    1 x serial port header
    1 x Q-Flash Plus button
    1 x reset button
    1 x reset jumper
    2 x temperature sensor headers
    1 x Clear CMOS jumper

    Onboard USB

    1 x USB Type-C header, with USB 3.2 Gen 2×2 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers

    Reviews

    There are no reviews yet.

    Be the first to review “GIGABYTE Z690 AERO G Motherboard”
    Please login to post questions

    GIGABYTE Z690 AERO G Motherboard Key Features

    • Intel LGA 1700 Socket – Supports 12th Gen Intel Core Series processors.
    • DDR5 Compatible – Dual-channel Non-ECC unbuffered DDR5 memory support.
    • Advanced Thermal Design – Comprehensive thermal architecture with enlarged thermal guards.
    • Cooling Bracket Compatibility – Compatible only with Intel LGA 1700 cooling brackets.
    • High-Grade Storage Support – Multiple high-speed storage options for enhanced performance.
    • Smart Fan 6 – Advanced fan controls for optimized cooling and quieter operation.
    • PCIe 5.0 Support – Next-generation PCI Express technology for high-performance components.

    Product information

    Processor SocketLGA 1700
    RAM Memory TechnologyDDR5
    Chipset TypeIntel Z690
    Memory Clock Speed6000 MHz
    DriveMemory Storage Capacity128 GB
    Main Power Connector Type24-pin
    Memory Slots Available4
    Number of Ports1
    Total Usb Ports10
    BrandGIGABYTE
    Model NameZ690 AERO G
    Model NumberZ690
    Item Weight3
    Warranty Description3 Years

      Audio Chipset

      Realtek ALC4080

      Form Factor

      ATX

      Windows Compatibility

      Windows 11 Supported

      LED Lighting

      RGB

      Form Factor

      ATX

      Back I/O Ports

      2 x USB 2.0/1.1 ports
      4 x USB 3.2 Gen 1 ports
      2 x USB 3.2 Gen 2 Type-A ports (red)
      1 x USB Type-C port, with USB 3.2 Gen 2×2 support
      1 x USB Type-C port, with USB 3.2 Gen 1 support
      2 x SMA antenna connectors (2T2R)
      1 x RJ-45 port
      1 x DisplayPort In port
      1 x HDMI port
      1 x optical S/PDIF Out connector
      2 x audio jacks

      Other Connectors

      1 x CPU fan header
      1 x water cooling CPU fan header
      4 x system fan headers
      2 x system fan/water cooling pump headers
      2 x addressable LED strip headers
      2 x RGB LED strip headers
      1 x front panel header
      1 x front panel audio header
      1 x noise detection header
      2 x Thunderbolt add-in card connectors
      1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
      1 x serial port header
      1 x Q-Flash Plus button
      1 x reset button
      1 x reset jumper
      2 x temperature sensor headers
      1 x Clear CMOS jumper

      Onboard USB

      1 x USB Type-C header, with USB 3.2 Gen 2×2 support
      1 x USB 3.2 Gen 1 header
      2 x USB 2.0/1.1 headers

      Reviews

      There are no reviews yet.

      Be the first to review “GIGABYTE Z690 AERO G Motherboard”
      Please login to post questions
